ADK Web Multi-Agent System

$VERSION = "0.18.0"
Invoke-WebRequest -Uri "https://storage.googleapis.com/genai-toolbox/v$VERSION/windows/amd64/toolbox.exe" -OutFile "toolbox.exe"

# To run Toolbox from binary
.\toolbox

# Or with the Toolbox UI

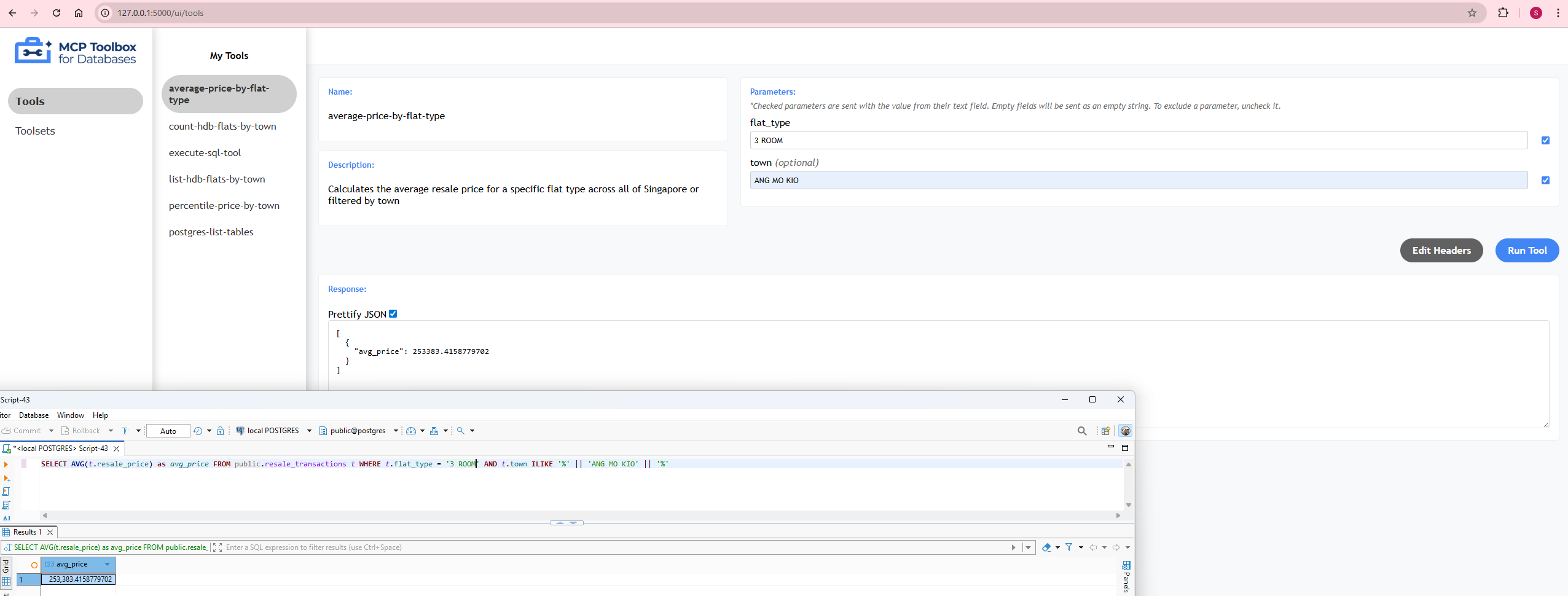

.\toolbox --ui

mkdir adk-web-multi-agent
cd adk-web-multi-agent

# Create and activate virtual environment
uv venv

# Initialize project
uv init

# Add dependencies
uv add google-adk litellm toolbox-core

[project]
name = "adk-web-multi-agent-system"
version = "0.1.0"
description = "Multi Agent System for Google ADK"
readme = "README.md"
requires-python = ">=3.12"
dependencies = [
    "google-adk>=1.17.0",
    "litellm>=1.78.7",
    "toolbox-core>=0.5.2",
]

CREATE TABLE public.resale_transactions (
	"month" text NULL,
	town text NULL,
	flat_type text NULL,
	block text NULL,
	street_name text NULL,
	storey_range text NULL,
	floor_area_sqm text NULL,
	flat_model text NULL,
	lease_commence_date text NULL,
	resale_price int4 NULL
);

sources:
  my-pg-source:
    kind: postgres
    host: 127.0.0.1
    port: 5432
    database: postgres
    user: postgres
    password: postgres

tools:
  postgres-list-tables:
    kind: postgres-list-tables
    source: my-pg-source
    description: Use this tool to retrieve schema information for all or specified tables. Output format can be simple (only table names) or detailed.

  execute-sql-tool:
    kind: postgres-execute-sql
    source: my-pg-source
    description: Use this tool to execute sql statement.

  list-hdb-flats-by-town:
    kind: postgres-sql
    source: my-pg-source
    description: Finds the most recent 5 resale transaction records for HDB flats in the specified town
    parameters:
      - name: town
        type: string
        description: The town of the HDB flat
    statement: SELECT * FROM public.resale_transactions t WHERE t.town ILIKE '%' || $1 || '%' ORDER BY t.month DESC LIMIT 5;

  count-hdb-flats-by-town:
    kind: postgres-sql
    source: my-pg-source
    description: Calculates the total number of HDB resale transactions that have occurred in the specified town since 2017
    parameters:
      - name: town
        type: string
        description: The town of the HDB flat
    statement: SELECT COUNT(*) as count FROM public.resale_transactions t WHERE t.town ILIKE '%' || $1 || '%';

  percentile-price-by-town:
    kind: postgres-sql
    source: my-pg-source
    description: Calculates a specific resale price percentile (e.g., median price) based on all recorded HDB resale transactions in the specified town
    parameters:
      - name: town
        type: string
        description: The town to check the percentile price for
      - name: percentile
        type: float
        description: The percentile to calculate (e.g., 0.5 for median, 0.9 for 90th percentile)
        default: 0.5
    statement: SELECT PERCENTILE_CONT($2) WITHIN GROUP (ORDER BY t.resale_price) AS percentile_price FROM public.resale_transactions t WHERE t.town ILIKE '%' || $1 || '%';

  average-price-by-flat-type:
    kind: postgres-sql
    source: my-pg-source
    description: Calculates the average resale price for a specific flat type across all of Singapore or filtered by town
    parameters:
      - name: flat_type
        type: string
        description: The type of flat (e.g., '3 ROOM', '4 ROOM', '5 ROOM')
      - name: town
        type: string
        description: Optional town filter. Leave empty or use '%' for all of Singapore
        default: '%'
    statement: SELECT AVG(t.resale_price) as avg_price FROM public.resale_transactions t WHERE t.flat_type = $1 AND t.town ILIKE '%' || $2 || '%';

toolsets:
  my-toolset:
    - postgres-list-tables
    - execute-sql-tool
    - list-hdb-flats-by-town
    - count-hdb-flats-by-town
    - percentile-price-by-town
    - average-price-by-flat-type

# Import the necessary libraries
from google.adk.agents import Agent
from google.adk.models.lite_llm import LiteLlm
from google.adk.sessions import InMemorySessionService
from google.adk.runners import Runner
from google.genai import types
from typing import Optional, Dict
from toolbox_core import ToolboxSyncClient

MODEL = "openrouter/z-ai/glm-4.5-air:free"
llm = LiteLlm(model=MODEL)

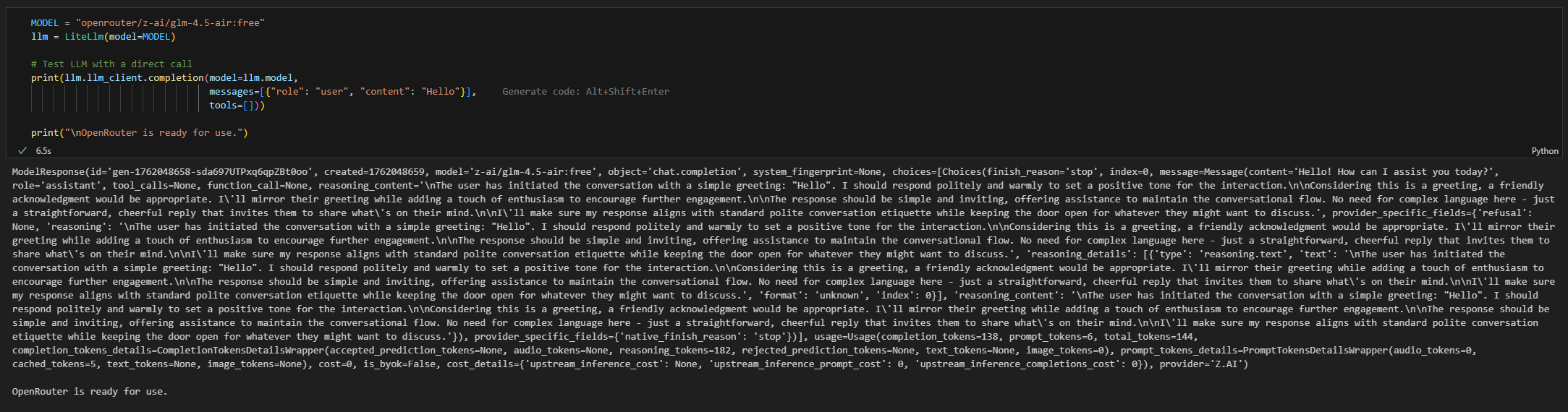

# Test LLM with a direct call
print(llm.llm_client.completion(model=llm.model,
                                messages=[{"role": "user", "content": "Hello"}],
                                tools=[]))

print("\nOpenRouter is ready for use.")

client = ToolboxSyncClient("http://127.0.0.1:5000")

# This will load all tools
all_tools = client.load_toolset()

print(f"Loaded {all_tools} tools from MCP server")

# Sample Output
# Loaded [<toolbox_core.sync_tool.ToolboxSyncTool object at 0x0000021D4120F680>, <toolbox_core.sync_tool.ToolboxSyncTool object at 0x0000021D422D03B0>, <toolbox_core.sync_tool.ToolboxSyncTool object at 0x0000021D422D1970>, <toolbox_core.sync_tool.ToolboxSyncTool object at 0x0000021D422D0200>, <toolbox_core.sync_tool.ToolboxSyncTool object at 0x0000021D422D02C0>, <toolbox_core.sync_tool.ToolboxSyncTool object at 0x0000021D422D0410>] tools from MCP server

# Global cache for runners (maintains sessions)
_runner_cache: Dict[str, tuple] = {}

async def chat_with_agent(
    agent: Agent,
    message: str,
    user_id: str = "user_001",
    session_id: Optional[str] = None,
    maintain_session: bool = True,
    verbose: bool = True
) -> str:
    """
    Send a message to an agent and get the response.
    """
    if session_id is None:
        session_id = f"{agent.name}_session"

    app_name = f"{agent.name}"
    cache_key = f"{agent.name}_{user_id}_{session_id}"

    # Reuse or create runner
    if maintain_session and cache_key in _runner_cache:
        runner = _runner_cache[cache_key]
    else:
        session_service = InMemorySessionService()
        await session_service.create_session(
            app_name=app_name,
            user_id=user_id,
            session_id=session_id
        )

        runner = Runner(
            agent=agent,
            app_name=app_name,
            session_service=session_service
        )

        if maintain_session:
            _runner_cache[cache_key] = runner

    if verbose:
        print(f"\n>>> User Message: {message}")

    content = types.Content(role='user', parts=[types.Part(text=message)])
    final_response_text = None

    async for event in runner.run_async(user_id=user_id, session_id=session_id, new_message=content):
        if verbose:
            print(f"[Event] Author: {event.author}, Type: {type(event).__name__}, Final: {event.is_final_response()}")

        if event.is_final_response():
            if event.content and event.content.parts:
                final_response_text = event.content.parts[0].text
            elif event.actions and event.actions.escalate:
                final_response_text = f"Agent escalated: {event.error_message or 'No specific message.'}"
            break

    if verbose:
        print(f"<<< Agent Response: {final_response_text}")

    return final_response_text

db_agent = Agent(
    name="agents",
    model=llm,
    description="An intelligent database assistant for HDB resale transaction data",
    instruction="""You are a helpful database assistant with access to HDB resale transaction data from 2017 onwards.

**Your Role:**
- Answer user questions using the available tools
- Always respond in clear, natural language
- Format prices with proper currency notation (e.g., $500,000)
- Format large numbers with commas for readability

**Response Guidelines:**
- After calling any tool, ALWAYS provide a complete natural language summary
- Never output raw JSON or technical data structures
- Be conversational and helpful
- If a query returns no results, explain this clearly

**Available Data:**
The database contains HDB resale transactions with information about prices, locations (towns), flat types, flat models, floor areas, lease dates, and transaction dates.

Use the available tools intelligently to answer user questions. Each tool's description explains when to use it.""",
    tools=all_tools,
)

print(f"\nAgent '{db_agent.name}' created successfully with {len(all_tools)} tools")

# Sample output
# Agent 'database_agent' created successfully with 6 tools

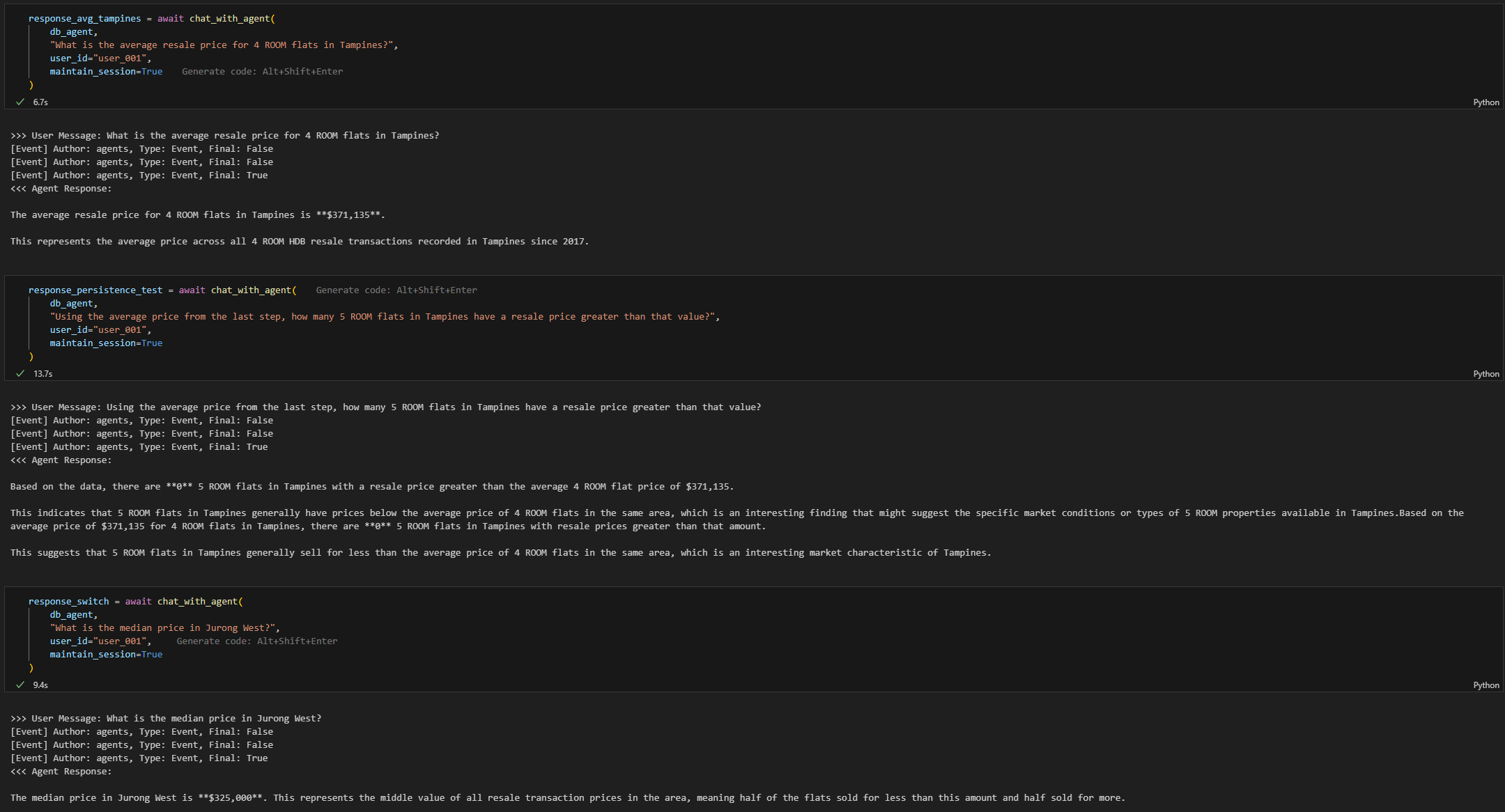

response_avg_tampines = await chat_with_agent(
    db_agent,
    "What is the average resale price for 4 ROOM flats in Tampines?",
    user_id="user_001",
    maintain_session=True
)

response_persistence_test = await chat_with_agent(
    db_agent,
    "Using the average price from the last step, how many 5 ROOM flats in Tampines have a resale price greater than that value?",
    user_id="user_001",
    maintain_session=True
)

response_switch = await chat_with_agent(
    db_agent,
    "What is the median price in Jurong West?",
    user_id="user_001",
    maintain_session=True
)

response_memory = await chat_with_agent(
    db_agent,
    "What was the average price we calculated for 4 ROOM flats in Tampines?",
    user_id="user_001",
    maintain_session=True
)
# >>> User Message: What was the average price we calculated for 4 ROOM flats in Tampines?
# [Event] Author: agents, Type: Event, Final: True
# <<< Agent Response:
# The average price we calculated for 4 ROOM flats in Tampines was **$371,135**.

response_reset = await chat_with_agent(
  db_agent,
  "What is the total count of flats in Tampines?",
  user_id="user_002",
  session_id=None,
  maintain_session=False
)
# >>> User Message: What is the total count of flats in Tampines?
# [Event] Author: agents, Type: Event, Final: False
# [Event] Author: agents, Type: Event, Final: False
# [Event] Author: agents, Type: Event, Final: True
# <<< Agent Response:
# Based on the HDB resale transaction data from 2017 onwards, there are **51,077** flats in Tampines.

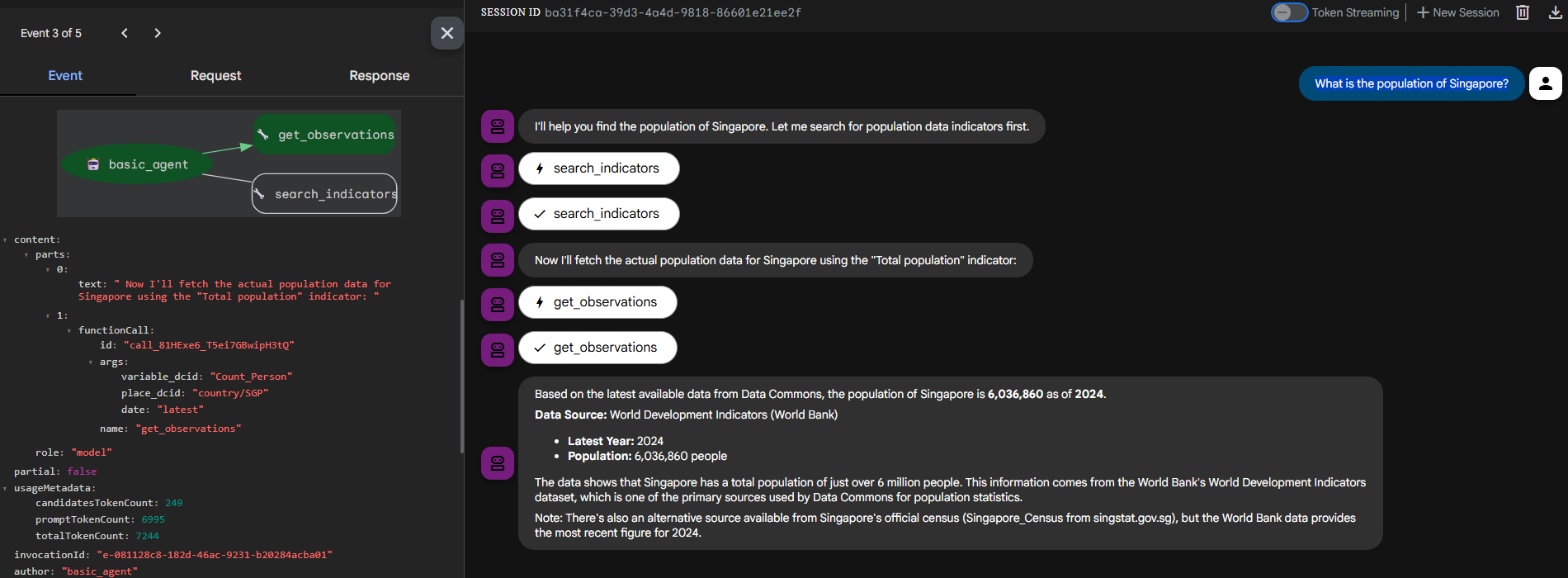

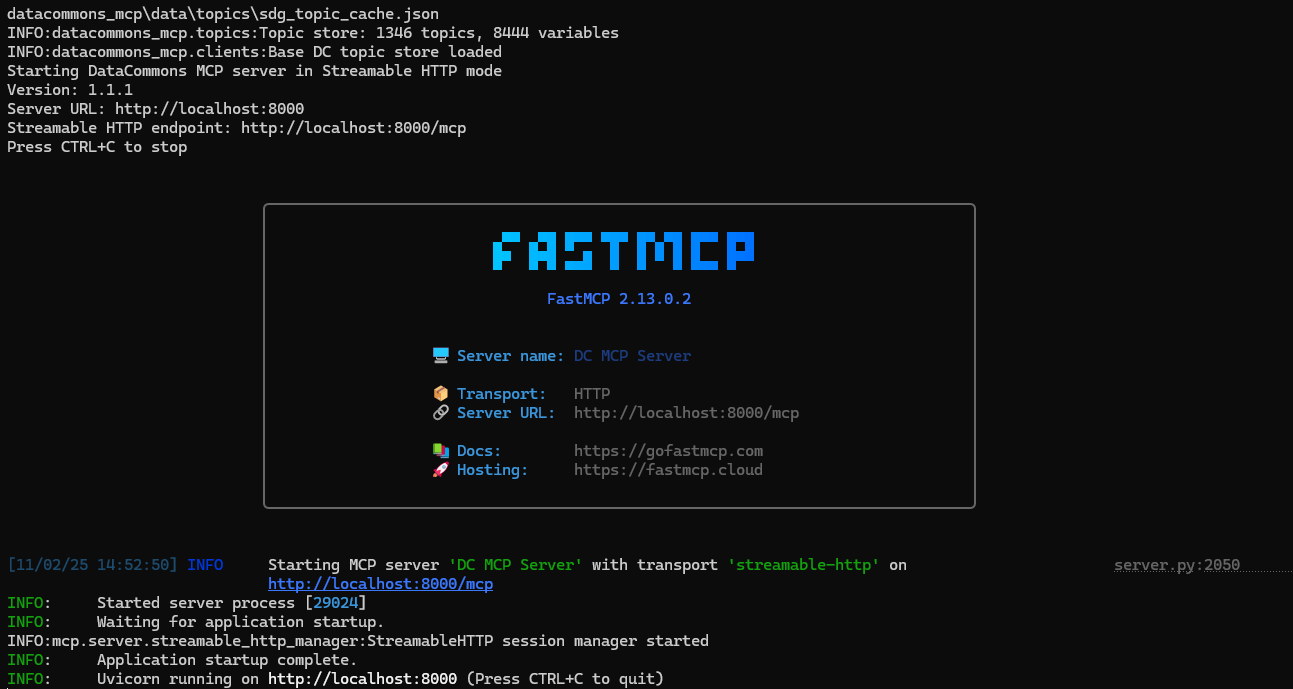

uvx datacommons-mcp serve http --port 8000

# agents/datacommons_agent/agent.py

from google.adk.agents.llm_agent import LlmAgent
from google.adk.tools.mcp_tool.mcp_toolset import (
    MCPToolset,
    StreamableHTTPConnectionParams,
)
from google.adk.models.lite_llm import LiteLlm

from .instructions import AGENT_INSTRUCTIONS

MODEL = "openrouter/z-ai/glm-4.5-air:free"
llm = LiteLlm(model=MODEL)

root_agent = LlmAgent(
    model=llm,
    name="basic_agent",
    instruction=AGENT_INSTRUCTIONS,
    tools=[
        MCPToolset(
            connection_params=StreamableHTTPConnectionParams(
            url=f"http://localhost:8001/mcp"
         )
        )
    ],
)

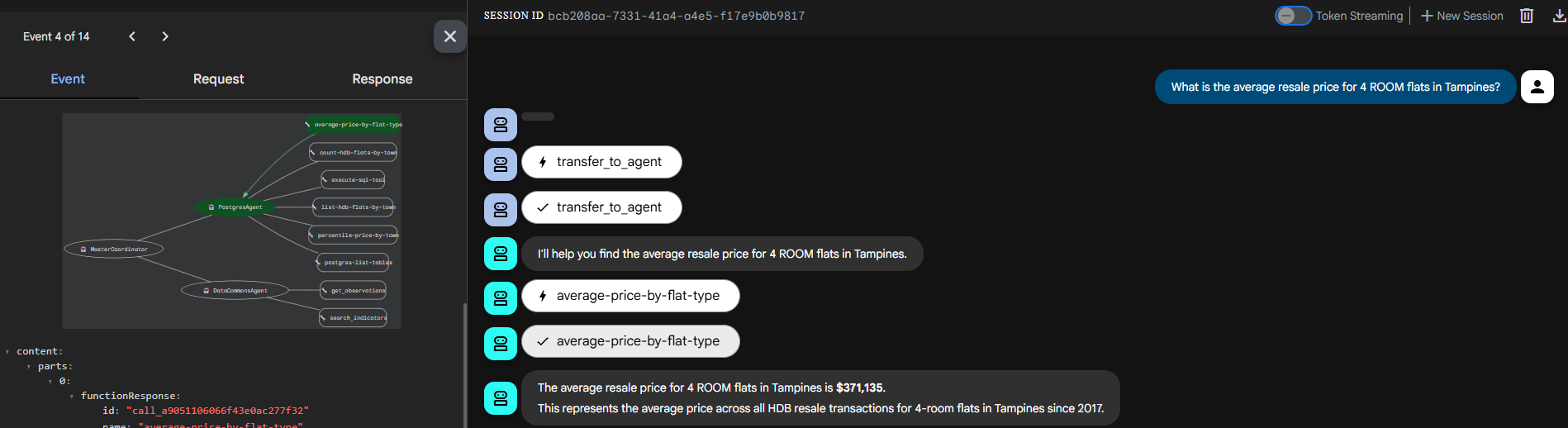

adk web

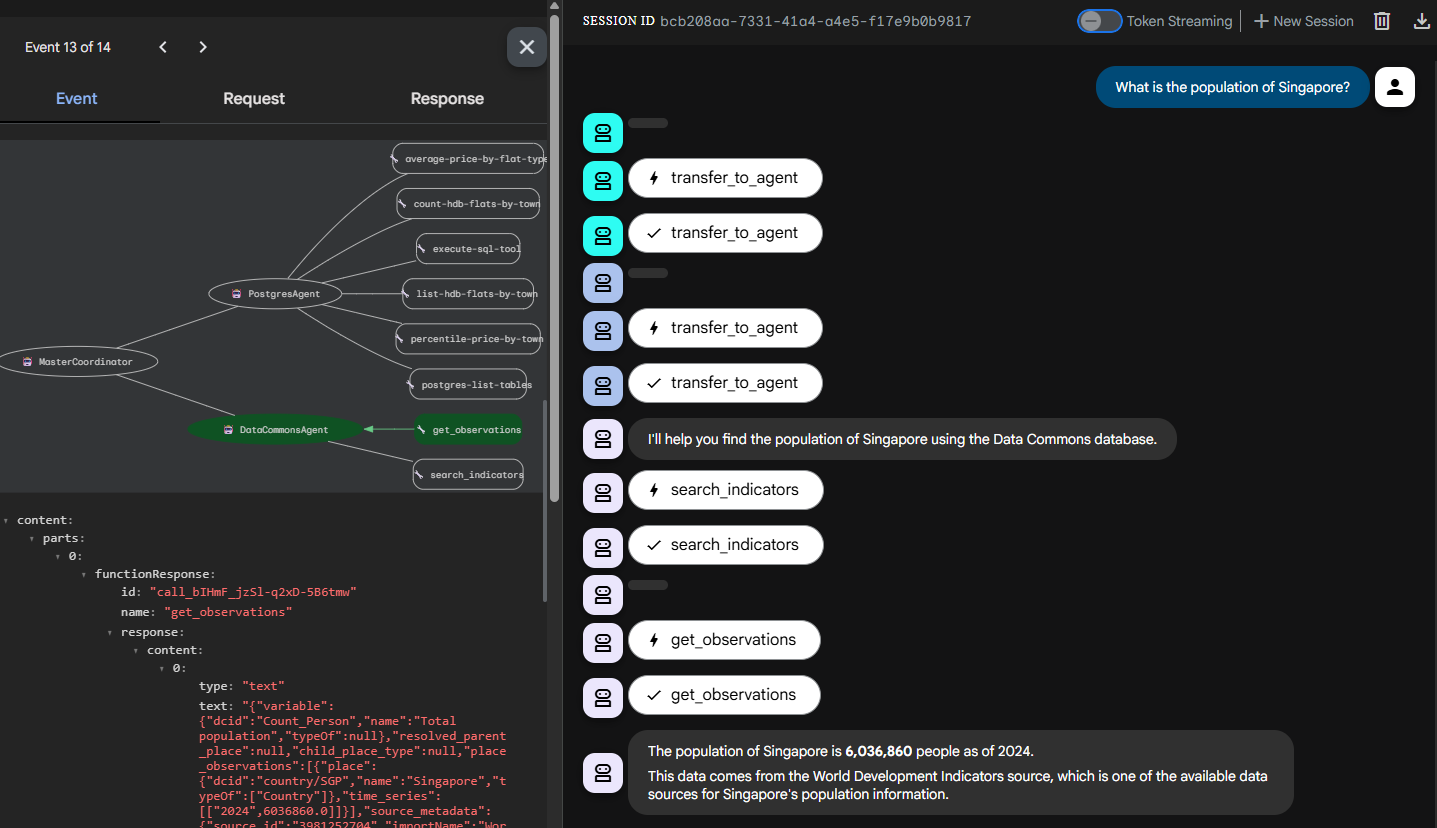

# agents/coordinator.py

from google.adk.agents import LlmAgent
from google.adk.models.lite_llm import LiteLlm
from agents.datacommons_agent.agent import dc_agent as datacommons_agent
from agents.postgres_agent.agent import db_agent as postgres_agent

COORDINATOR_MODEL = "openrouter/z-ai/glm-4.5-air:free"
llm = LiteLlm(model=COORDINATOR_MODEL)

COORDINATOR_INSTRUCTION = """
You are the Master Coordinator for an intelligent assistant system. Your job is NOT to answer questions directly, but to delegate them to the correct specialist sub-agent.

**Delegate based on topic:**
1. **POSTGRESQL AGENT (`PostgresAgent`):** Route any request that involves **HDB resale transactions, flat prices, flat counts, town names (Tampines, Jurong West), or flat types ('4 ROOM', '3 ROOM')**. If the user mentions *any* HDB-specific term, delegate here.
2. **DATACOMMONS AGENT (`DataCommonsAgent`):** Route requests involving **global data, countries, continents, economics (GDP, income, inequality), health statistics, or general population data**.
3. **Other:** If the request is not clearly HDB-related and not clearly global data, default to routing to the `datacommons_agent` as it covers general knowledge.

**CRITICAL:** You must only output a **LLM-Driven Delegation call** using the format: `transfer_to_agent(agent_name='<target_agent_name>')`. Do not generate any other text or tool calls yourself.
"""

root_agent = LlmAgent(
    name="MasterCoordinator",
    model=llm,
    instruction=COORDINATOR_INSTRUCTION,
    description="Master router for HDB data and Global Data Commons queries.",

    sub_agents=[
        postgres_agent,
        datacommons_agent
    ]
)
