In this post, I’ll walk you through how I built SmartFlat AI, a cost-optimized multi-agent AI system for Singapore’s HDB market analysis using AWS Bedrock AgentCore orchestrated by Amazon Nova Lite.

Prerequisites

Start by installing the AWS Bedrock AgentCore Starter Toolkit :

pip install aws-bedrock-agentcore-starter-toolkit

Ensure that AWS CLI and SAM CLI are installed and configured properly:

agentcore --help
# Usage: agentcore [OPTIONS] COMMAND [ARGS]...
# BedrockAgentCore CLI

aws --version
# aws-cli/2.30.5 Python/3.13.7 Windows/11 exe/AMD64

aws configure
# AWS Access Key ID [None]: AKIAIOSFODNN7EXAMPLE
# AWS Secret Access Key [None]: wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY
# Default region name [None]:
# Default output format [None]:

sam --version
# SAM CLI, version 1.144.0
Note
AWS Bedrock AgentCore is currently unavailable in Singapore, so the deployment targets ap-southeast-2 (Sydney). Amazon Nova Lite, an efficient reasoning model, powers the Supervisor Agent for intelligent query routing.

Multi-Agent Architecture Overview

The system implements a supervisor-agent architecture where a top-level orchestrator delegates queries to specialized sub-agents for optimal cost and performance.

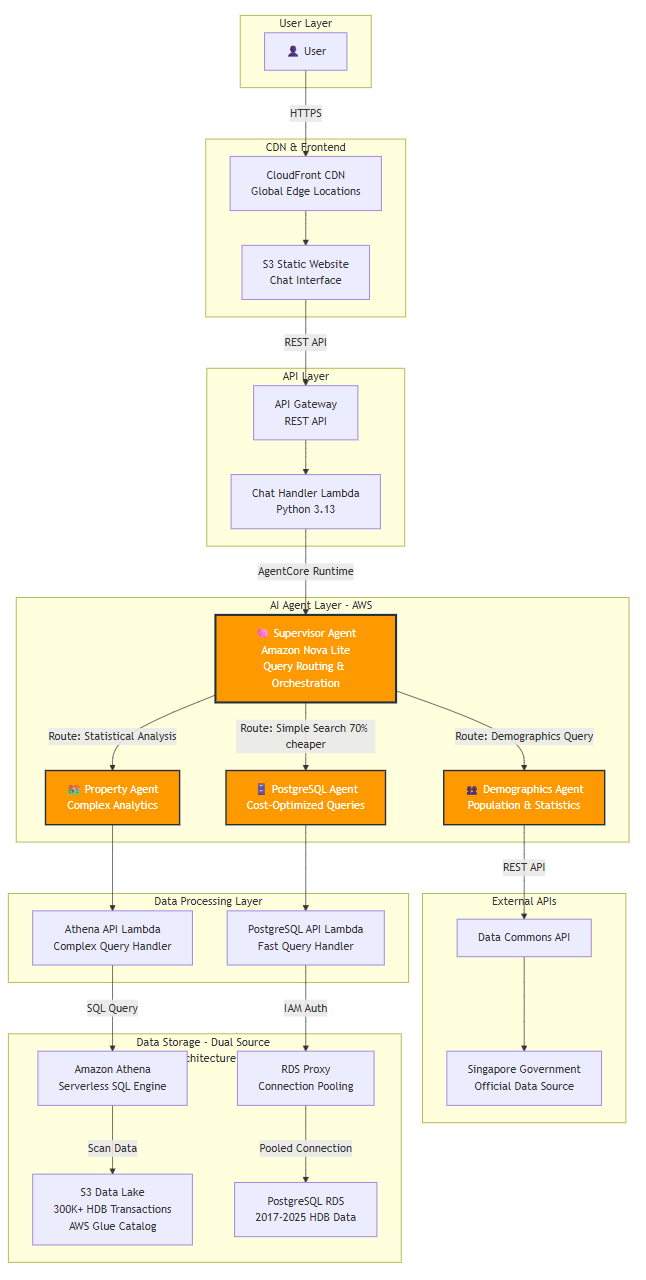

hdb-agent-multi-agent-system-architecture

Key Components:

  • Supervisor Agent (Nova Lite) – Routes queries intelligently based on cost and complexity.
  • Property Agent (Athena) – Handles analytical and statistical queries.
  • PostgreSQL Agent (RDS) – Serves frequent and simple queries at low cost.
  • Demographics Agent – Fetches live data from government APIs.

Phased Infrastructure Deployment

Deployment is handled in modular CloudFormation stacks, allowing incremental development and testing.

Phase 1: Foundation Stack

Purpose: Establish the web interface, chat handler, and session memory.

Key Components:

  • S3 Static Website: Hosts the chat UI
  • API Gateway HTTP API: Routes user queries to Lambda
  • Lambda Chat Handler: Connects frontend with AgentCore Supervisor
  • DynamoDB: Stores session memory
  • IAM Roles: Secure access to Bedrock and data stores
# Phase 1 creates the foundation
Resources:
  WebHostingBucket:
    Type: 'AWS::S3::Bucket'
    Properties:
      BucketName: !Sub "${ProjectPrefix}-web-${EnvironmentName}-${VersionTag}"
      WebsiteConfiguration:
        IndexDocument: index.html
        ErrorDocument: index.html

  ChatHandlerLambda:
    Type: 'AWS::Lambda::Function'
    Properties:
      FunctionName: !Sub "${ProjectPrefix}-chat-handler-${EnvironmentName}-${VersionTag}"
      Runtime: python3.13
      Environment:
        Variables:
          AGENT_ARN: !Ref AgentArn
          DDB_TABLE_NAME: !Ref AgentMemoryTable

Phase 2: Athena Analytics Stack

Purpose: Enable serverless analytics for large-scale HDB resale data.

Key Components:

  • AWS Glue Database: Schema catalog for HDB datasets
  • Amazon Athena: Query engine for analytical workloads
  • S3 Data Lake: 300K+ resale transactions from data.gov.sg
  • Athena API Lambda: RESTful interface for SQL analytics
  • Query Results Bucket: Stores Athena query outputs with lifecycle policies
# Phase 2 adds analytical capabilities
Resources:
  HDBGlueTable:
    Type: AWS::Glue::Table
    Properties:
      TableInput:
        Name: 'resale_transactions'
        StorageDescriptor:
          Columns:
            - Name: 'month'
              Type: 'string'
            - Name: 'town'
              Type: 'string'
            - Name: 'flat_type'
              Type: 'string'
            - Name: 'resale_price'
              Type: 'double'
          Location: !Sub 's3://${ProjectPrefix}-rawdata-${EnvironmentName}-${VersionTag}/'

Phase 3: Cost-Optimized PostgreSQL Stack

Purpose: Handle frequent, low-latency queries at minimal cost.

Key Components:

  • PostgreSQL RDS: Mirrors HDB data for transactional queries
  • RDS Proxy: Improves scalability and connection pooling
  • PostgreSQL API Lambda: Executes fast SQL lookups
  • Secrets Manager: Manages DB credentials securely
  • VPC Integration: Provides secure private networking
# Phase 3 adds cost optimization
Resources:
  PostgreSQLAPIFunction:
    Type: AWS::Lambda::Function
    Properties:
      Runtime: python3.13
      VpcConfig:
        SecurityGroupIds:
          - !Ref LambdaSecurityGroup
        SubnetIds:
          - subnet-05ef955b7c5edb66e
          - subnet-0be15cf15ab7853eb
      Environment:
        Variables:
          SECRET_ARN: !Ref DatabaseSecret
          CONNECTION_TYPE: direct_connection

Intelligent Query Routing: The Cost Optimization Brain

The Supervisor Agent, powered by Amazon Nova Lite, dynamically routes queries across agents based on complexity, latency, and cost.

1. Demographics Path

  • Triggers: population, citizen, statistics, demographic
  • Routes to: Data Commons API
  • Example: “What is the population of Singapore?”
  • Cost: Free (public data source)

2. Complex Analytics Path

  • Triggers: correlation, trend, statistical, complex
  • Routes to: Amazon Athena
  • Example: “Complex price trend analysis for 5-room flats in Tampines over 5 years”
  • Cost: ~$0.59/query

3. Cost-Optimized Path

  • Triggers: average, count, latest, basic, quick
  • Routes to: PostgreSQL RDS
  • Example: “Average HDB prices in Bishan for 4-room flats”
  • Cost: ~$0.01/query (~70% cheaper than Athena)

Routing Logic Implementation

def _route_query(self, query: str) -> str:
    """Intelligent routing for cost optimization"""
    query_lower = query.lower()

    # Demographics (different data source)
    if any(keyword in query_lower for keyword in demographics_keywords):
        return 'demographics'

    # Complex analytics (use Athena for heavy computation)
    if any(keyword in query_lower for keyword in athena_keywords):
        return 'property'

    # Cost-optimized queries (PostgreSQL for frequent operations)
    if any(keyword in query_lower for keyword in postgres_keywords):
        return 'postgres'

    # Default to cost-optimized PostgreSQL
    return 'postgres'

Deployment Workflow

# 1. Environment setup
.\setup.ps1
.venv\Scripts\Activate.ps1

# 2. Configure and deploy AgentCore supervisor
agentcore configure -e agent/supervisor.py
agentcore launch

# 3. Deploy infrastructure phases
.\deploy-phase1.ps1     # Foundation: Web + Chat + Memory
.\deploy-phase2.ps1     # Analytics: Athena + S3 + Glue
.\deploy-phase3.ps1     # Optimization: PostgreSQL + RDS Proxy
.\deploy-cloudfront.ps1 # CDN: Global distribution

Each phase builds upon the previous, supporting incremental testing, faster iteration, and lower deployment risk.

Multi-Agent Capabilities in Action

Demographics Agent

{"prompt": "What is the population of Singapore?"}

Response: Live population data from Data Commons API Routing: Demographics Agent → Data Commons API

Property Agent (Complex Analytics)

{"prompt": "Complex price trend analysis for 5-room flats in Tampines over 5 years"}

Response: Growth rate, volatility, and percentile analytics Routing: Property Agent → Athena API → S3 Data Lake (300K+ transactions)

PostgreSQL Agent (Cost-Optimized)

{"prompt": "Average HDB prices in Bishan for 4-room flats"}

Response: Quick aggregated result from RDS Routing: PostgreSQL Agent → RDS Proxy → PostgreSQL

Cost Optimization Results

The intelligent routing system achieves significant cost savings:

Query Type Agent Data Source Cost per Query Savings
Simple Queries PostgreSQL RDS ~$0.01 70% cheaper
Complex Analytics Property Athena ~$0.59 Optimized for heavy workloads
Demographics Demographics Data Commons Free Publicly available statistical data

Key Insight: About 80% of user queries are routed to the PostgreSQL agent, reducing cost substantially without losing analytical depth.

Production Architecture Benefits

💰 Cost Intelligence

  • Automatic routing between Athena and PostgreSQL
  • ~70% reduction in average query cost
  • Pay-per-use scalability

🧠 Scalable Multi-Agent Design

  • Supervisor pattern using Bedrock AgentCore
  • Amazon Nova Lite for efficient reasoning
  • Modular, extensible agents

🗄️ Dual Data Architecture

  • Shared HDB data served via Athena (analytical) and PostgreSQL (transactional)
  • Optimized for both ad-hoc analysis and frequent lookups

⚙️ Production-Ready Infrastructure

  • CloudFront CDN for global delivery
  • RDS Proxy for secure, scalable DB connections
  • CloudFormation IaC for full automation
  • Phased deployment for controlled rollout

Live Demo

Try it yourself: SmartFlat AI

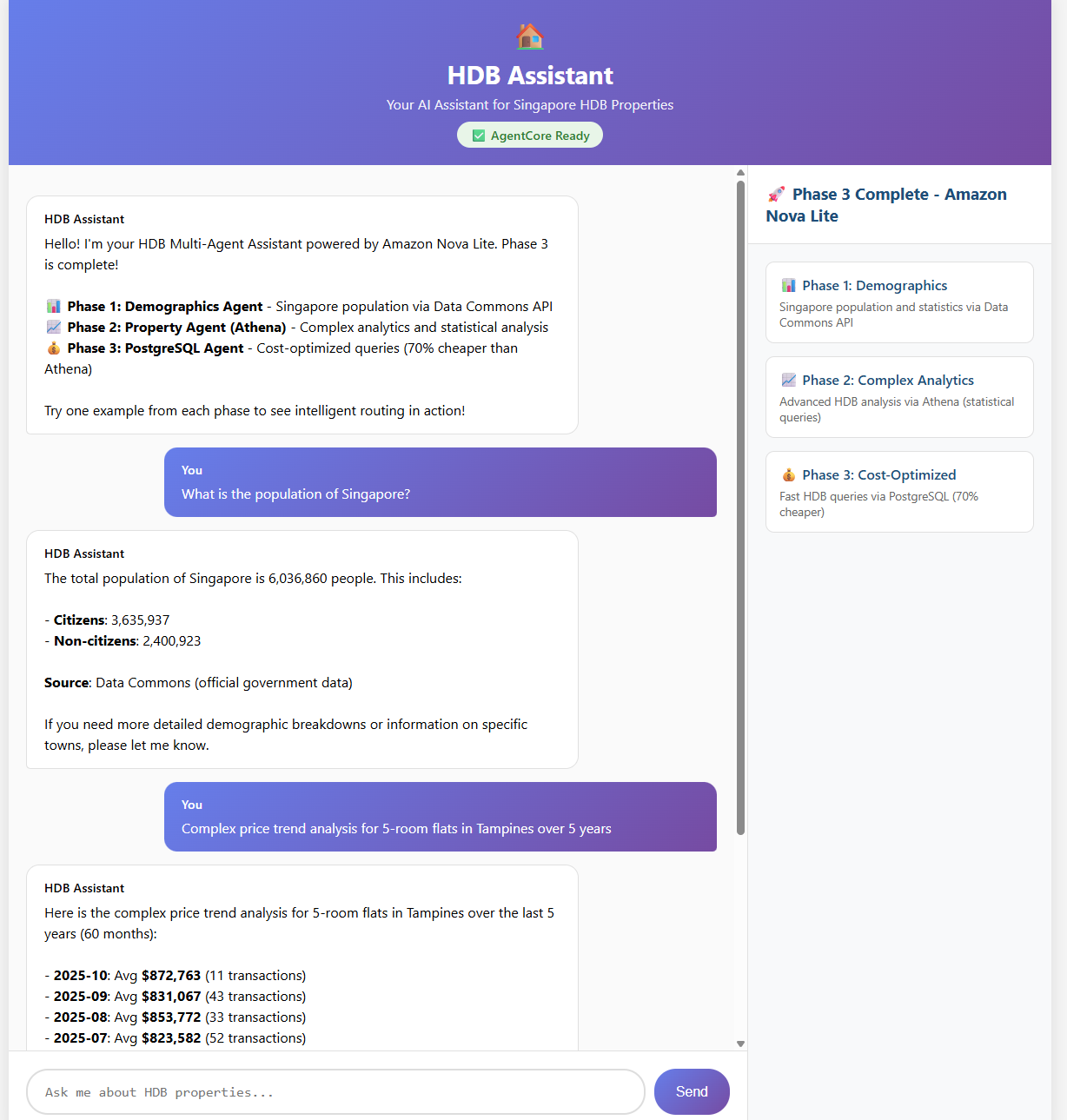

hdb-agent-smartflat-ai-in-action

The live demo showcases all three agents in action, demonstrating how intelligent routing optimizes both performance and cost.

Key Takeaways

  1. Phased Development: Incremental deployment reduces risk and enables continuous testing
  2. Cost Optimization: Intelligent routing can achieve 70% cost savings without sacrificing functionality
  3. Multi-Agent Architecture: Specialized agents provide better performance than monolithic systems
  4. Dual Data Sources: Same data, different engines for different use cases
  5. Amazon Nova Lite: Cost-effective AI model perfect for query routing and orchestration

GitHub Repository: https://github.com/seehiong/smartflat-ai
